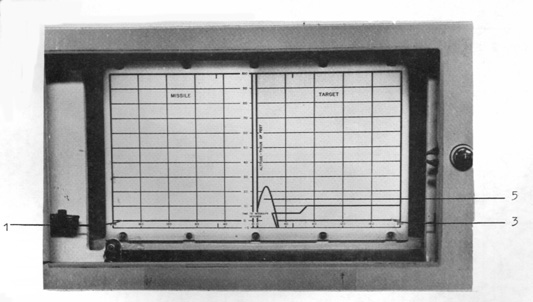

IFC Vertical Ploting Board

This unit showed predicted intercept time on the horizontal axis, and the right pen target altitude, and the left pen
a) (before launch) predicted intercept altitude
b) (after launch) missile altitude

  1. left pen
  2. right pen
  3. Dead Zone

Image and text from Rolf Goerigk
