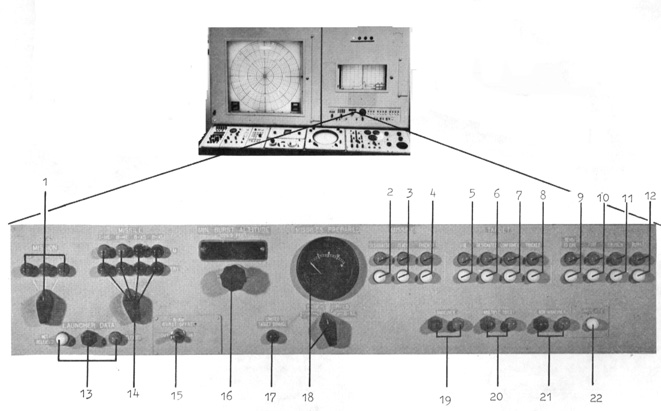

IFC Batttery Control Indicator Panel

This unit showed battery status.


  1. MISSION (SS, SA, LA)
  2. MISSILE DESIGNATED
  3. MISSILE READY
  4. MISSILE TRACKED
  5. TARGET FOE
  6. TARGET DESIGNATED
  7. TARGET CONFIRMED
  8. TARGET TRACKED
  9. READY TO FIRE
  10. FIRE
  11. LAUNCH (250 yds sec. MSL speed detected)
  12. BURST
  13. LAUNCHER DATA
  14. MISSILE (I-HE (AJAX), B-HE, B-XS, B-XL)
  15. B-XW-BURST OFFSET (IN, warehead detonates at a certain distance from killpoint. OUT, warehead detonates at killpoint)
  16. MIN BURST ALTITUDE
    1000` FEET (sets min. Burst altitude for X-wareheads)
  17. LIMITED TARGET DAMAGE (illum. if target is too far under #16.)
  18. MISSILE PREPARED
  19. MANEUVER
  20. MULTIPLE TARGET
  21. NON MANEUVER
  22. SIMULATE (firing simulator, test responder)

Image and text from Rolf Goerigk
