| BRL 1964, SDS 910, starting page 0238
|
SDS 910
Scientific Data System 910
MANUFACTURER
Scientific Data Systems, Inc.

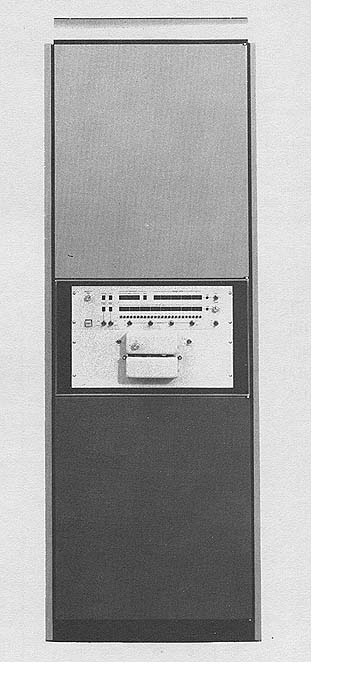

Photo by Scientific Data Systems, Inc.
APPLICATIONS
The system is designed for general purpose computing. Although its
primary purpose is on-line control and real-time systems work, the
910 is useful as a general purpose scientific computer.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary
Binary digits/word 24 + parity
Binary digits/instruction
Instructions/word 1
Instructions decoded 39
Arithmetic system Fixed point
Floating point is programmed.
Instruction type One address
Number range - (1-2-23)to + (1-2-23)
Automatic coding
FORTRAN II with magnetic tape statements.
Symbolic Assembler
Complete package of subroutines and utility programs.
Program interchangeability with SDS 920 Computer.
A comprehensive software package, including FORTRAN
II with magnetic tape statements, a symbolic assembler
with macro-handling facilities, and a complete array
of arithmetic sub-routines and utility programs,
assures powerful, flexible programming with a minimum
of "learning time." An SDS innovation, the Programmed
Operator, allows programs from any one SDS 900 Series
computer to be run on any other SDS 900 Series machine.
The SHARE library is available to all 900 Series users.
ARITHMETIC UNIT
Incl. Stor. Access
Fixed Point Microsec
Add 16
Multiply 248
Floating Point
(24-Bit Coefficient + 9-Bit Exponent)
Add 440
Multiply 504
(39-Bit Coefficient + 9-Bit Exponent)
Add 832
Multiply 1,696
Construction (Arithmetic unit only)
Solid-state components are used throughout.
Arithmetic mode Parallel
Operation Concurrent
STORAGE
No. of No. of Cycle Time
Medium Words Bits/Word Microsec
Magnetic Core 2,048 - 16,384 24 8
Magnetic Tape Type Type
9146 9246
No of chars/linear inch 200 556 Chars/inch
Channels or tracks on tape 6 6 Track/tape
Blank tape separating each record 0.75 0.75 Inches
Tape speed 75 75 Inches/sec
Transfer rate 15,000 15,000 Chars/sec
Start time 3.3 3.3Millisec
Stop time 1.8 1.8 Millisec
Physical properties of tape
Width 0.5 0.5 Inches
Length of reel 2,400 2,400 Feet
Composition Mylar Mylar
Tape transfer time/channel 62 24 Microsec
Rewind time 160 160 Inches/sec
Up to four tape units per controller.
Checking features on magnetic tape includes a readfollow-write and a
longitudinal parity check.
INPUT
Medium Speed
Punched Cards 200 cards/minute
Paper Tape 300 chars/sec
Typewriter manual
| BRL 1964, SDS 910, starting page 0239
|
OUTPUT
Medium
Punched Cards
Typewriter
Optional equipment includes a 60 char/sec paper tape
punch, an automatic input/output typewriter, 15 kc and 41.7
?cc magnetic tape units (IBM compatible), 300 line/minute
printer, 200 and 250 cards/minute card readers, graph
plotter, 896 channels of priority interrupt, second
input/output buffer, direct communication with IBIS. 7090,
analog-to-digital converters and paper tape spooler.
There are five input/output operation modes, buffer with
input/output rates an excess of 50,000 chars/sec
simultaneous with computation, dual channel priority
interrupt, display console and manual control of internal
registers and 300 chars/sec photo electric paper tape reader.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power, computer 0.8 Kw
Area, computer 200 sq ft
Weight, computer 900 lbs
Heat Dissipation 3,750 (BTU/hr)
Site Preparations
Physical: Dimensions 75" x 24" x 27", Power - 110v,
60 cps, 17 amps, Operating temperature range -
0oC, + 50oC.
COST, PRICE AND RENTAL RATES
Purchase Monthly
Price Rental
910 General Purpose Computer
Paper-Tape Reader 300 char/sec
w/2,048 word core memory $41,000 $ 1,450
w/4,096 word core memory 56,000 1,750
CHECKING FEATURES
Parity checking on all memory and input/output operations.
The power supply is checked before every cycle.
ADDITIONAL FEATURES AND REMARKS
Typical application areas include aircraft and missile design
and analysis, data reduction systems, civil engineering,
simulation studies, optical design, automatic checkout
systems, electrical distribution analysis, on-line process
control, range safety, statistical analysis, radar control
systems,thermodynamic design, searching theory and
analysis, crystalographic studies, reactor design and
simulation, trajectory computations, data acquisition systems,
quality control analysis, medical research, manufacturing
control systems, structural analysis, information processing,
navigation, critical path scheduling, hydraulic and gas
network analysis, satellite computer operation,
communication switching systems, and telemetry data
reduction.
Five distinct input/output systems are standard equipment on
900 Series computers. Information can be processed by bits,
characters, or words, for flexibility and speed. A built-in
priority interrupt system allows efficient handling of a
virtually unlimited number of peripheral input/output
devices. An external Memory Interlace system automatically
provides direct input/output connection to the core memory,
without program intervention, at rates up to 200,000
chars/sec. With SDS 900 Series computers, over 16,000
signals are available for device operation and testing under
program control. Three input/output operations can be
carried on simultaneously. An integrated group of optional
input/output devices - including both low and high density
IBM compatible magnetic tape units - are available from SDS.
System uses silicon solid-state components to widen
operating temperature range and thereby increase reliability
by an order of magnitude. All memory operations and
input/output are parity checked. Low noise coupling for
peripheral equipment insulates the computer system against
outside electrical disturbances which cause errors. The
memory is protected against information loss in the event of
power failure.
Closed loop synchronization of all input/output opertions
assures no inadvertent loss of information.
| BRL 1964, SDS 920, starting page 0240
|
SDS 920
Scientific Data System 920
MANUFACTURER
Scientific Data Systems, Inc.
Photo by Scientific Data Systems, Inc.
APPLICATIONS
The system is a general purpose computer designed for scientific
engineering computation and for systems integration.
Typical application areas include aircraft and missile design and
analysis, data reduction systems, civil engineering, simulation
studies, optical design, automatic checkout systems, electrical
distribution analysis, on-line process control, range safety,
statistical analysis, radar control systems, thermodynamic design,
searching theory and analysis, crystalographic studies, reactor
design and simulation, trajectory computations, data acquisition
systems, quality control analysis, medical research, manufacturing
control systems, structural analysis, information processing,
navigation, critical path scheduling, hydraulic and gas network
analysis, satellite computer operation, communication switching
systems, and telemetry data reduction.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary
Binary digits/word 24 + parity
Binary digits/instruction -
Instructions/word 1
Instructions decoded 62
Arithmetic system Fixed point
Floating point is programmed.
Instruction type One address
Number range - (1-2-23 ) to + (1-2-23)
Automatic coding
FORTRAN II with magnetic tape statements.
Symbolic Assembler
Complete package of subroutines and utility programs.
Program interchangeability with SDS 910 Computer.
A comprehensive software package, including FORTRAN II
with magnetic tape statements, a symbolic assembler with macro-
handling facilities, and a complete array of arithmetic sub-routines
and utility programs,
| BRL 1964, SDS 920, starting page 0241
|
assures powerful, flexible programming with a minimum of
"learning time." An SDS innovation, the Programmed Operator,
allows programs from any one SDS 900 Series computer to be
run on any other SDS Series machine. The SHARE library is
available to all 900 Series users.
SDS 920 has instructions to facilitate floating point and multi-
precision operations. The command list for the 920 is more
powerful than that of the 910.
ARITHMETIC UNIT
Incl. Stor. Access
Fixed Point Microsec
Add 16
Multiply 32
Floating Point
(24-Bit Coefficient + 9-Bit Exponent
Add 292
Multiply 248
(39-Bit Coefficient + 9-Bit Exponent
Add 368
Multiply 600
Construction (Arithmetic unit only
Solid-state components are used throughout.
Arithmetic mode Parallel
Operation Concurrent
STORAGE
No. of No. of Cycle Time
Medium Words Bits/Word Microsec
Magnetic Core 4,096 -16,384 24 8
Magnetic Tape Type
9146 9246
No. of chars/linear inch 200 556 Chars/inch
Channels or tracks on tape 6 6 Track/tape
Blank tape separating each record 0.75 0.75 Inches
Tape Speed 75 75 Inches/sec
Transfer rate 15,000 15,000 Chars/sec
Start time 3.3 3.3 Millisec
Stop time 1.8 1.8 Millisec
Physical properties of tape
Width 0.5 0.5 Inches
Length of reel 2,400 2,400 Feet
Composition Mylar Mylar
Tape transfer time/channel 62 24 Microsec
Rewind time 160 160 Inches/sec
Up to four tape units per controller. Checking features on
magnetic tape includes a readfollow-write and a longitudinal
parity check.
INPUT
Medium Speed
Punched Cards 200 cards/minute
Paper Tape 300 chars/second
Typewriter Manual
OUTPUT
Medium Speed
Punched Cards
Paper Tape 60 chars/second
Typewriter
Optional equipment includes 15 kc and 41.7 kc magnetic tape
units (IBM compatible), 300 line/minute printer, 200
cards/minute and 250 cards/minute card readers, graph
plotter, 896 channels of priority interrupt, second
input/output buffer, direct communication with IBM 7090,
analog-to-digital converters, and paper tape spooler.
There are five input/output operation modes, buffer with
input/output rates in excess of 50,000 chars/sec simultaneous
with computation, dual channel priority interrupt, display
console and manual control of internal registers.
CHECKING FEATURES
Parity checking on all memory and input/output operations.
The power supply is checked before every cycle.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power, computer 1.100 KVA
Area, computer 200 sq ft
Weight, computer 1,000 lbs
Heat Dissipation 3,900 (BTU/hr)
Site preparations:
Physical: Dimensions are 66" x 48" x 27", Power 11OV, 60 cps
d 20 amps, Operating temperature range 0 C. to + 50 C.
COST, PRICE AND RENTAL RATES
920 General Purpose Computer w/4,096 words of core
memory, 300 chars/sec Paper-Tape Reader, 60 char
sec Paper-Tape Punch, and Input/Output Typewriter.
Purchase: $89,000 Monthly Rental: $2,500
ADDITIONAL FEATURES AND REMARKS
The SDS 910 and SDS 920 have identical input/output
systems so that a common set of peripheral equipment can be
connected to either machine. The word and number format
and memory of both machines are also identical. The command
list for the 920 is more powerful, making it about 10 times
more capable for internal computing speeds than the SDS 910.
Five distinct input/output systems are standard equipment on
900 Series computers. Information can be processed by bits,
characters, or words, for flexibility and speed. A built-in
priority interrupt system allows efficient handling of a
virtually unlimited number of peripheral input/output devices.
An external Memory Interlace system automatically provides
direct input/output connection to the core memory, without
program intervention, at rates up to 200,000
characters/second. With SDS 900 Series computers, over
16,000 signals are available for device operation and testing
under program control. Three input/output operations can be
carried on simultaneously. An integrated group of optional
input/output devices - including both low and high density
IBM compatible magnetic tape units - are available from SDS.
System uses silicon solid-state components to widen operating
temperature range and thereby increase reliability by an order
of magnitude. All memory operations and input/output are
parity checked. Low noise coupling for peripheral equipment
insulates the computer system against outside electrical
disturbances which cause errors. The memory is protected
against information loss in the event of power failure. Closed
loop synchronization of all input/output operations assures no
inadvertent loss of information.
| BRL 1964, SDS 9300, starting page 0242
|
SDS 9300
Scientific Data Systems 9300
MANUFACTURER
Scientific Data Systems
APPLICATIONS
General purpose digital computer for solving a large class of scientific
problems.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary
Binary digits/word 24 & 48
Arithmetic system Fixed & floating point
Instructions decoded 110
6-bit Flag Register with set/reset/test instructions which provides fast, easy-
to-use program switches for logical decision making. Each position may be
set or reset under program control and the status used to control program
flow.
11 high-speed search operations operate at 1.75 microseconds/item.
Multi-level indexing and indirect addressing.
3 Index Registers
Indirect Addressing
Index Registers which contain and operate with a base value and an
increment or decrement.
Repeat instruction which operates with variable size incrementing or
decrementing; when used with Input Output, permits Gather-Read and Scatter-
Write.
Extensive shift and inter-register instructions for data manipulation.
Flexible and easily programmed subroutine execution.
Up to 8 Automatic Data Channels each capable of fully buffered operation at
one word every 1.75 microseconds simultaneously with full speed
computation.
Automatic Data Channels which operate upon either words or characters.
The number of characters/word is under program control.
Addressing of Input/output operations can be both indexed and indirect to
facilitate Gather and Scatter operations.
Parity checking of Memory and Input/Output operation
Searching of magnetic tape, disks, etc., can be accomplished independently
of the memory and require no computer time.
A Parallel Word Input/Output system in addition to the Automatic Data
Channels to facilitate operation upon certain types of asynchronous
information under program control.
SDS 910 available as a satellite Input/Output Processor.
Up to 32,000 output control signals and input test signals.
A complete priority interrupt system with up to 1,024 priority levels. These
can be individually enabled and disabled under program control.
Automatic program loading from cards, paper tape, magnetic tape, drums or
disks.
Complete display of all programmable registers with extensive manual
controls.
6 Sense Switches, 2 Manual Interrupt Switches and a Selective Halt provide
complete capability for console control during execution.
Automatic coding.
FORTRAN, Symbolic Assembler, and a Monitor System as part of a
complete software package.
ARITHMETIC UNIT
Incl. Stor. Access
Fixed Point Microsec
Add 1.75
Double Precision Add 3.5
Multiply 7.0
Shift (24-positional) 5.25
Floating Point
(39-Bit Coefficient + 9-Bit Exponent
Add 14.0
Multiply 12.25
Typical floating point programs, using a 48-bit word are executed at the rate
of 100,000 instructions/ second.
Operation Concurrent
Eight tape stations can operate concurrently without disturbing arithmetic
computations, which can take place simultaneously.
STORAGE
No. of No. of Access
Medium Words Bits/Word Microsec
Magnetic Core 32,768 0.7
Eight tapes operate concurrently with arithmetic operations.
INPUT
Medium Speed
Data Channel 2,000,000 words/sec
Magnetic Tape
There are 8 automatic data channels, three other types of Input/Output, one
of which permits up to 1,024 channels of priority interrupt, and another
allows data transfer up to 2,285,000 characters/second.
OUTPUT
Medium Speed
Data Channel 2,000,000 words/sec
Magnetic Tape
CIRCUIT ELEMENTS OF ENTIRE SYSTEM
All silicon semi-conductors.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power 3.5 Kw
Site preparation requirements. System is small and transportable, requiring no
air conditioning, except to maintain l0oC. to 40 C. in room.
Dimensions are approximately 6 x 8 x 2 feet plus operators console.
COST, PRICE AND RENTAL RATES
Purchase price of computer: $250,000
ADDITIONAL FEATURES AND REMARKS
The system is logically and electrically similar to the SDS 910 and the SDS
920.
Byte operations which permit manipulation of 3, 6,9, 12,15, 18, or 21-bit
Bytes. Two 12-bit Bytes may be multiplied in 3.5 microseconds.
| BRL 1964, SDS 9300, starting page 0243
|
| BRL 1964, SEMA 2000, starting page 0244
|
SEMA 2000
SEMA 2000
MANUFACTURER
H R B Singer, Incorporated

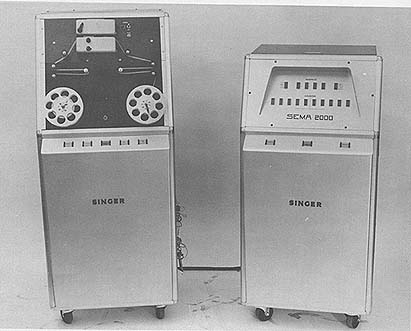

Photo by H R B Singer, Incorporated
APPLICATIONS
Off-line business data processing.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary coded dec.
Decimal digits/word 10
Decimal digits/instruction 0
Instructions/word 0
Arithmetic system Fixed point
Instruction type One address
Number range -999 999,999 to +8,999,999,999
Automatic built-in subroutines. None
Automatic coding. None
Registers and B-Boxes
The address register may be automatically incremented.
Instructions are inserted by means of a plugboard wired program.
ARITHMETIC UNIT
Incl. Stor. Access Excl. Stor. Access
Microsec Microsec
Add 8,500 167
Mult 42,500 34,000
Multiply times are average times per digit in the multiplier.
Arithmetic mode Serial
Timing Synchronous
Operation Concurrent
STORAGE
No. of No. of Access
Medium Words Digits Microsec
Magnetic Core 16 160 1,000
Accumulator 1 10 167
Magnetic Drum 4,000 or 160 1,000
10,000
Magnetic Tape
No. of units that can be connected 1 Unit
| BRL 1964, SEMA 2000, starting page 0245
|

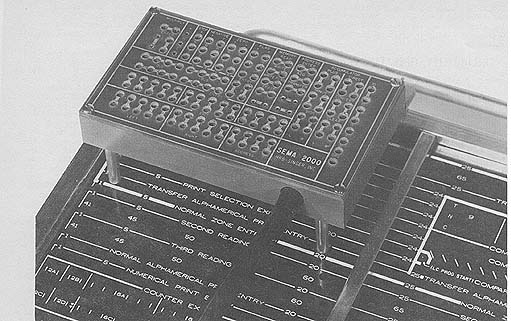

Photo by H R B Singer, Incorporated
No. of chare/linear inch 50 Chars/inch
Channels or tracks on the tape 2 Tracks
Blark tape separating each record 0.125 Inches
Tape speed 7.5 Inches/se
Transfer rate 375 Chars/sec
Average time for experienced
operator to charge reel 10 Seconds
Physical properties of tape
Width 0.25 Inches
Length of reel 600 Feet
Fast reel change obtained through the use of a cartridge.
INPUT
Medium Speed
Pinched Cards 650 cards/min
Paper Tape header 300 chars/sec
The card reading rate depends on the type of read used. A photo-electric
paper tape reader is used.
OUTPUT
Medium Speed
Punched Cards 100 cards/min
Tabulator 100 - 150 lines/min
CIRCUIT ELEMENTS OF ENTIRE SYSTEM
Type Quantity
Diodes 2,500
Transistors 1,500
Magnetic Cores 1,920
CHECKING FEATURES
A parity check is made on each word read from the
drum.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power, computer 0.01 Kw 0.01 KVA
Area, computer 4 sq ft
Volume, computer 16 cu ft
Room size 6 x 10 ft
Floor loading 50 lbs/sq ft
50 lbs concen max
Weight, computer 200 lbs
Special site preparation is not required. An air conditioner is not
required.
COST, PRICE AND RENTAL RATES
Price
Basic system $28,500 to $50,000
Rental, basic system 750 to 1,250
Rental, high speed paper
tape reader 400
Maintenance/service contract $1,000/year after first
year, if purchased.
PERSONNEL REQUIREMENTS
One person is required to operate, program and code system for each 8-hour
shift.
| BRL 1964, SEMA 2000, starting page 0246
|
Individual training is made available by the manufacturer to
the user. Control panel wiring is quite simple for a user
with IBM wiring experience.
Operator training is given on the user's own premises.
RELIABILITY, OPERATING EXPERIENCE
Operation with 97% up-time has been achieved.
ADDITIONAL FEATURES AND REMARKS
A mobile electronic memory attachment is available which
sorts, stores, summarizes and selcts data at random as a
100% by-product of normal EAM operations. The system
can be readily transferred from one I/0 device to another.
SEMA operates between card cycles of the IBM (EAM)
machine to which it is attached. The IBM machine
(collators, reproducers, tabulators, etc.) operate at their
normal speed.
As a result of its random access capabilities, the SEMA
2000 can perform important functions, at electronic
speeds, as a 100% by-product of necessary EAM machine
operations; can summarize data "off line" via collators and
other high speed equipment to substantially reduce
accounting machine time; eliminate major sorting, collating
and card handling operations; and eliminate the need for
computations by means of stored tables.
The flexibility of SEMA 2000 enables it to increase the
speed of handling punched cards by as much as 6 1/2
times. It also permits a reduction in costly accounting
machine time, for example, by summarizing details via a
high speed collator and using the accounting machine to
print only the pre-summarized totals in SEMA.
SEMA 2000 can be programmed to provide controls in the
following areas:
Inventory Control Order Confirmation
Sales Analysis Order Allocation
Payroll Production Control
Store Audit Labor Distribution Reports
Pricing Unit Control
SEMA 2000 is an electronic memory unit designed to utilize
conventional EAM tabulating equipment to produce
electronic data processing results at typical EAM prices. It
operates with accounting machines, collators, reproducers,
calculators and punches. With its random access
capabilities, SEMA is able to perform important functions
between card cycles on EAM equipment and thereby
providing increased data processing output.
The transistorized SENA utilizes an electronic memory
drum for random access data storage. It takes its input and
output instructions from EAM equipment, reads selected
data at random and summarizes these data as a by-product
of necessary EAM machine operations.
The SEMA memory drum has a capacity of 2000 tendigit
words and two flags per word. By means of a control
switch, capacity can be increased to 4000 five-digit words
and one flag per word.
Additional memory drums can be added. For instance, with
five drums SEMA can accommodate up to 10,000 ten-digit
words and two flags, or 20,000 five-digit words and one
flag per word.
The following applications demonstrate the ability of SEMA
2000: Order allocation, inventory control and sales
analysis-as a result of a single collator pass. Inventory
control and sales analysis as a by-product of an invoicing
run. Automatic pricing and extending of line items as a by-
product of an invoicing run. Order confirmation, inventory
control and "goods in process" interrogation as a by-product
of a single accounting machine run. Elimination of
calculating machine passes for payroll computationsby
means of stored deduction tables.
| BRL 1964, SEMAC, starting page 0247
|
SEMAC
SEMAC
MANUFACTURER
H R B Singer, Incorporated
APPLICATIONS
On-line business data processing
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary coded dec
Decimal digits/word 10
Decimal digits/instruction 10
Instructions/word 1
Instructions decoded 35
Arithmetic system Fixed point
Instruction type One address
Number range -999,999,999 to +8,999,999,999
+---------+--------+---------+---------+
| Command | Branch | Repeat | Address |
| | Addr | Counter | |
+---------+--------+---------+---------+
Automatic built-in subroutines Drum search routines.
Automatic coding
None
Registers and B-boxes
Repeat counter
ARITHMETIC UNIT
Incl. Stor Access Excl. Stor. Access
Microsec Microsec
Add 8,500. 167
Mult 42,500/digit 34,000
Div 100,000/digit 91,500
Multiply time is average value/digit in multiplier.
Divide time is average value/digit in quotient.
Construction (Arithmetic unit only)
Transistors 2,500
Diodes 3,500
Magnetic-Cores 1,920
Arithmetic mode Serial
Timing Synchronous
Operation Sequential
STORAGE
No. of No. of Access
Medium Words Digits Microsec
Magnetic Core 16 160 1,000
Registers 3 30 500
Magnetic Drum 10,000 100,000 8,500
Magnetic Tape
No. of units that can be connected 1 Unit
No. of chars/linear inch 50 Chars/inch
Channels or tracks on the tape 2 Tracks
Blank tape separating each record 0.125 Inches
Tape speed 7.5 Inches/sec
Transfer rate 375 Chars/sec
Average time for experienced
operator to change reel 10 Seconds
Physical properties of tape
Width 0.25 Inches
Length of Reel 600 Feet
Fast reel change obtained through the use of a cartridge.
INPUT
Medium Speed
Punched Cards 100-650 cards/min
Paper Tape (Photo) 300 chars/sec
Paper Tape (Mech) 50 chars/sec
Typewriter 10 chars/sec
Card reading rate depends on type of reader used.
OUTPUT
Medium Speed
Punched Cards 100 cards/min
Paper Tape 50 chars/sec
Tabulator 100-150 lines/min
Typewriter 10 chars/sec
CIRCUIT ELEMENTS OF ENTIRE SYSTEM
Type Quantity
Diodes 3,500
Transistors 2,500
Magnetic Cores 1,920
CHECKING FEATURES
A parity check is made on each word from the drum.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power, computer 0.50 Kw 0.01 KVA
Area, computer 8 sq ft
Volume, computer 32 cu ft
Room size 10 x 20 ft
Floor loading 50 lbs/sq ft
50 lbs concen max
Weight, computer 300 lbs
Special site preparation is not required. An air conditioner is
not required.
COST, PRICE AND RENTAL RATES
Price
Memory Unit $28,500 to $50,000
Control Unit 20,000
Paper Tape Reader 5,000
Tape Typewriter 3,500
Rental, memory unit 750 to 1,250
Rental, control unit 500
Rental, paper tape reader 400
Rental, tape typewriter 150
Maintenance/service contract $1,800 after first
year, if purchased.
PERSONNEL REQUIREMENTS
One 8-Hour Two 8-Hour Three 8-Hour
Shift Shifts Shifts
Programmers 1 1 1
Operators 1 2 3
Individual training is made available by the manufacturer to
the user.
ADDITIONAL FEATURES AND REMARKS
The system has its own input and output, as opposed to the
SEMA 2000.
| BRL 1964, SPEDAC 220, starting page 0248
|
SPEDAC 220
MANUFACTURER
Hazeltine Corporation, Technical Development Center

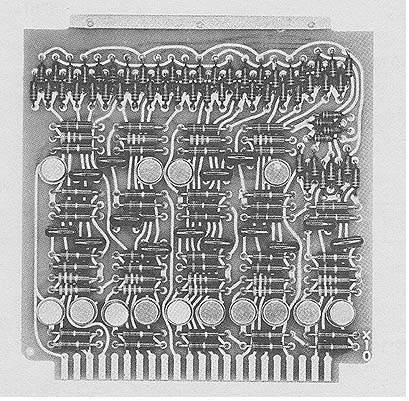

Photo by the Hazeltine Corporation
APPLICATIONS
Scientific applications include simulation, data reduction, real-time
control, optimization, correlation, and dynamic system analysis.
The field of application encompasses those areas in which fast and
accurate solutions are required for equations of algebraic,
differential, partial differential, simultaneous, non-linear, and
implicit types. These equations may contain discontinuities,
arbitrary functions, trigonometric functions, exponential functions,
logarithmic functions, complex roots, and factorials.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary
Binary digits/word 22, 26 or 30
Binary digits/instruction 26
Instructions/word 1
Arithmetic system Fixed point (incremental)
Instruction type One address
Number range - 1 <= N < + 1
Automatic built-in subroutines include multiplication and
integration. The total number of instructions decoded and the
instruction word format depends upon the external equipment.
Instructions are required only for input/output.
ARITHMETIC UNIT
Arithmetic mode Parallel
Timing Synchronous
Operation Concurrent
STORAGE
No. of No. of Access
Words Bin/Digits Microsec
Registers two/integrator 22, 26 or 30 0.8
Magnetic Core 2,176 49,112 2
Magnetic Tape
No. of units that can be connected 1
Magnetic tape units are not normally required.
INPUT
Medium
Keyboard
Paper Tape
General Purpose Computer
Magnetic Tape
Flexowriter
Digital-to-analog Converters
OUTPUT
Medium
Numeric Display
Paper Tape
General Purpose Computer
Magnetic Tape
Flexowriter
Digital-to-analog Converters
CIRCUIT ELEMENTS OF ENTIRE SYSTEM
Type Quantity
Tubes 0
Diodes (1N281)
| BRL 1964, SPEDAC 220, starting page 0249
|

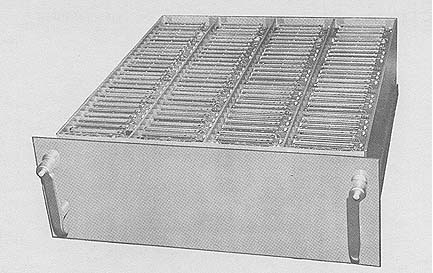

Photo by the Hazeltine Corporation
Transistors
2N404
2N1754
Magnetic Cores
50 mil (Ferro) 49,112
Used for memory only
CHECKING FEATURES
Checking features include diagnostic program; input/output
parity checks; register overflow alarm; and a synchronizer
monitor.
POWER, SPACE, WEIGHT, AND SITE PREPARATION
Power, computer 2.4 Kw 3.0 KVA 0.8 pf
Air conditioner None supplied
Volume, computer 120 cu ft
Area, computer 20 sq ft
Room size 120 sq ft
Floor loading 100 lbs/sq ft
Weight, computer 1,700 lbs
Internal blowers supply forced air at 300 cfm; these may
optionally be replaced by a floor plenum supplying 300 cfm of
air. An air conditioner is not required.
PRODUCTION RECORD
Number produced to date 2
Number in current operation 2
Time required for delivery 6 months
COST, PRICE AND RENTAL RATE
Price
Basic System $132,000 and up
PERSONNEL REQUIREMENTS
Training made available by the manufacturer to
users includes programming and maintenance schools.
RELIABILITY, OPERATING EXPERIENCE
All circuits are solid-state and are designed to withstand
wide temperature fluctuations. All connector contacts are gold-
plated. The bulk of the electronic components are Military-
Standard.
Operating Ratio (Good/Attempted to Run Time): 0.995 for
1,000 hour periods, according to manufacturer's records.
ADDITIONAL FEATURES AND REMARKS
The system can be used in either analog and/or digital
hybrid configuration to provide rapid solutions to
transcendental equations.
SPEDAC is a digital differential analyzer (DDA). It employs a
variable number of multiple digital arithmetic units, all of
which operate simultaneously.
SPEDAC 220 computes at 200,000 iterations per second.
Regardless of problem complexity, the entire problem solution
is updated incrementally each 5 microseconds. Various types
of computing elements perform integrations, multiplications,
additions and decisions.
SPEDAC is a combination of the characteristics of general
purpose analog and digital computers. Although all the
circuits are digital, SPEDAC is programmed like an analog
computer, i.e., the original problem formulation is placed in
the machine, with a minimum of programming effort, rather
than a solved, linearized, approximation made by a numerical
analyst.
| BRL 1964, SPEDAC 310, starting page 0250
|
SPEDAC 310
MANUFACTURER
Hazeltine Corporation, Technical Development Center
Photo by the Hazeltine Corporation
APPLICATIONS
Scientific applications include simulation, data reduction,
real-time control, optimization, correlation, and dynamic
system analysis.
The field of application encompasses those areas in which
fast and accurate solutions are required for equations of
algebraic, differential, partial differential, simultaneous, non-
linear, and implicit types. These equations may contain
discontinuities, arbitrary functions, trigonometric functions,
exponential functions, logarithmic functions, complex roots,
and factorials.
PROGRAMMING AND NUMERICAL SYSTEM
Internal number system Binary
Binary digits/word 22, 26 or 30
Binary digits/instruction 26
Instructions/word 1
Arithmetic system Fixed point (incremental)
Instruction type One address
Number range -1 <= N < +1
Automatic built-in subroutines include multiplication and
integration. The total number of instructions decoded and the
instruction word format depends upon the external
equipment. Instructions are required only for input/output.
ARITHMETIC UNIT
Arithmetic mode Parallel
Timing Synchronous
Operation Concurrent
STORAGE
No. of No. of Access
Words Bin/Digits Microsec
Registers two/integrator 22,26 or 30 0.8
Magnetic Core 2,176 49,112 2
Magnetic Tape
No. of units that can be connected 1
Magnetic tape units are not normally required.
INPUT
Medium
Keyboard
Paper Tape
General Purpose Computer
Magnetic Tape
Flexowriter
Digital-to-analog Converters
OUTPUT
Medium
Numeric Display
Paper Tape
General Purpose Computer
Magnetic Tape
Flexowriter
Digital-to-analog Converters
CIRCUIT ELEMENTS OF ENTIRE SYSTEM
Type Quantity
Tubes 0
Diodes (1N995)
Transistors (2N965)
Magnetic Cores (30 mil Ferro) 49,112
| BRL 1964, SPEDAC 310, starting page 0251
|
CHECKING FEATURES
Checking features include diagnostic programs; input/output parity
checks; register overflow alarm; and a synchronizer monitor.
POWER, SPACE, WEIGHT, AND SITE. PREPARATION
Power, computer 4.5 Kw 5 KVA 0.9pf
Air conditioner None supplied. 600-100oF required
Volume, computer 120 cu ft
Area, computer 20 sq ft
Room size 160 sq ft
Floor loading 100 lbs/sq ft
100 lbs concen max
Weight, computer 2,000 lbs
Room environment of 60o - 100oF required. An air conditioner is not
required.
COST, PRICE AND RENTAL RATES
Price
Basic System $200,000 and up
PERSONNEL REQUIREMENTS
Training.made available by the manufacturer to users includes
programming and maintenance schools.
RELIABILITY, OPERATING EXPERIENCE
All circuits are solid-state and are designed to withstand wide
temperature fluctuations. All connector contacts are gold-plated. The
bulk of the electronic components are Military-Standard. Operating
Ratio (Good/Attempted to Run Time): 0.995 for 1,000 hour periods,
according to manufacturer's records.
ADDITIONAL FEATURES AND REMARKS
The system can be used in either analog and/or digital hybrid
configuration to provide rapid solutions to transcendental equations.
SPEDAC is a digital differential analyzer (DDA). It employs a variable
number of multiple digital arithmetic units, all of which operate
simultaneously.
SPEDAC 310 computes at 1,000,000 iterations per second. Regardless of
problem complexity, the entire problem solution is updated
incrementally each 5 microseconds. Various types of computing elements
perform integrations, multiplications, additions and decisions.
SPEDAC is a combination of the characteristics of general purpose
analog and digital computers. Although all the circuits are digital,
SPEDAC is programmed like an analog computer, i.e., the original
problem formulation is placed in the machine, with e minimum of
programming effort, rather than a solved. linearized, approximation
made by a numerical analyst.
Go To Table of Contents
