A Test Case for Four Styles of
Difference Engines


The BASIC code below is in 4 parts
   See below
The screen shots are shown in two parts

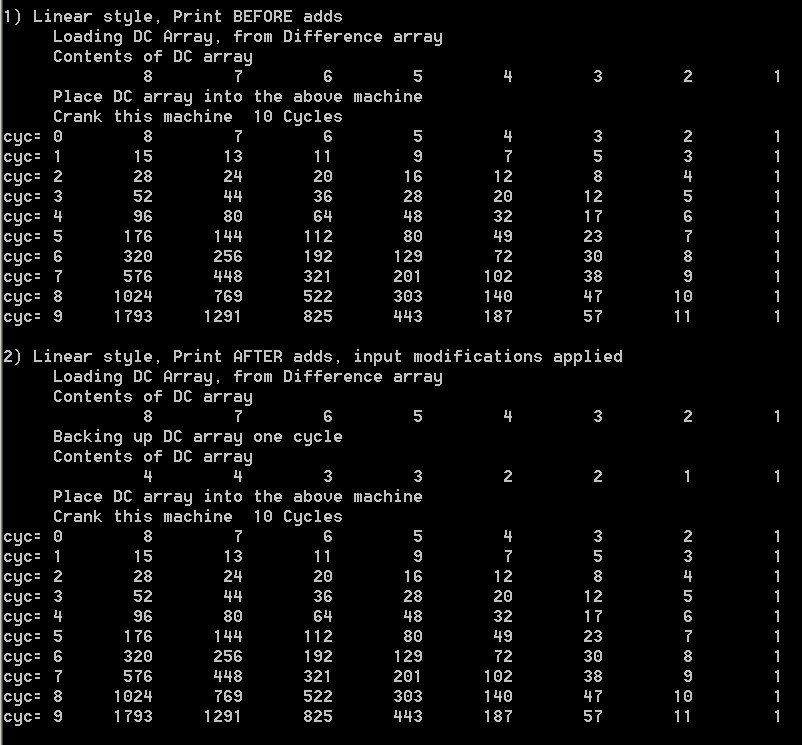

Two linear machines, not pipelined,
   the top printing before additions,
   the bottom printing after additions -
      note the adjustments to back up one step before inserting values into the machine

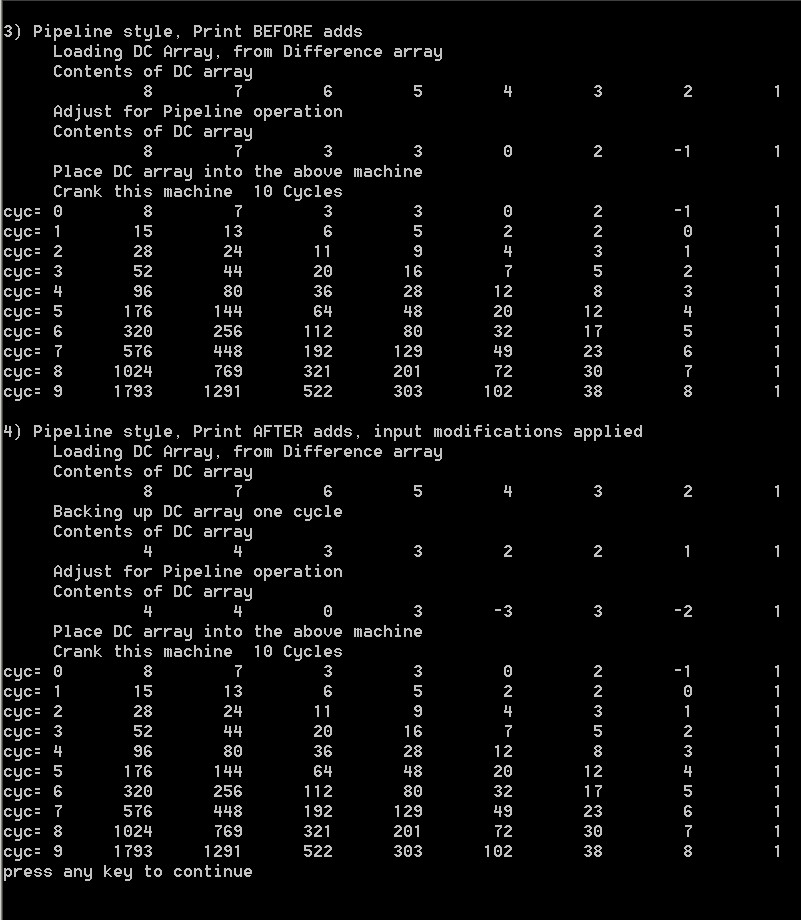

Two pipelined machines,
      both have inputs adjusted to allow the pipelining
   the top printing before additions,
   the bottom printing after additions -
      note the adjustments to back up one step before adjusting for pipelining
          before inserting values into the machine

Note: the bottom pipelined machine simulates the Babbage Difference Engine II
    that is, it prints after doing add into DC0
    Of course, the adjustments to the inputs are made before
        setting up the actual machine.






    In the file:///C:/0-Net/bab/Babbage7-OutputCropped.jpg    ATTACHMENT,
    only the cyc= value and the polynomial value are shown



    '----------------- Start of BASIC CODE -------------
    ' name Babbage7-02.bas
'
'  enhanced explanations
'
' Problem:
' - because the Babbage engine prints AFTER adding,
'   the effect is that the first value printed
'   is actually the second value expected from a
'   simple difference engine as exemplified by
'    "6. A simple example of the Method of Finite Differences"
'
'   Note: another problem, already solved, is that the
'      initial Difference Column values from
'     "6. A simple example of the Method of Finite Differences"
'     need to be modified to allow "correct" operation of
'     the Babbage "pipeline" operation.
'
' GOAL:
'- provide a verification of simulation of the
'     Babbage Difference Engine # 2
'  using:
'     limited accuracy (64 bit)
'     binary binary rather than decimal
'
' METHOD:
' - Use 4 simulations, one after the other, ranging from
'    1) a very simple "linear" easy to verify Difference Engine (DE)
'    2) the simple DE with post add printing
'    3) a DE with Babbage style "pipeline" with pre-add  printing
'    4) a DE with Babbage style "pipeline" with post-add printing
' - Using a set of very simple unique difference values
'     to easily track the operation sequences in the simulations
' - Demonstrating that with the required input modifications,
'     the results (printing) will be identical
'     and identical to the outputs expected from
'     "6. A simple example of the Method of Finite Differences"
'
'
OPTION EXPLICIT
DEFLNG  A-Z  ' default to  64 bit variables
CONST NumDC=8    ' number of Difference Columns
DIM I        ' counters
DIM Cycle = 0      ' working temp value
CONST CycLim =10
DIM DifAy(NumDC)    ' input array
 DifAy(0) = 8
 DifAy(1) = 7
 DifAy(2) = 6
 DifAy(3) = 5
 DifAy(4) = 4
 DifAy(5) = 3
 DifAy(6) = 2
 DifAy(7) = 1

Dim DC(NumDC)      ' array of Difference Columns

'--------------------------------
'    1) a very simple "linear" easy to verify Difference Engine (DE)
PRINT
PRINT "1) Linear style, Print BEFORE adds"
GoSub LoadDCArray
PRINT "     Place DC array into the above machine"
Print "     Crank this machine ";CycLim;" Cycles "
Cycle = 0
while cycle < CycLim
    GoSub PrintCycle

for I = 0 to NumDC-2
    DC(I) += DC(I+1)
next I
Cycle += 1
Wend

'--------------------------------
'    2) the simple DE with post add printing
PRINT
PRINT "2) Linear style, Print AFTER adds, input modifications applied"

GoSub LoadDCArray

GoSub BackUpOneCycle  ' back up for print second
PRINT "     Place DC array into the above machine"
Print "     Crank this machine ";CycLim;" Cycles "
Cycle = 0
while cycle < CycLim
for I = 0 to NumDC-2
    DC(I) += DC(I+1)
next I

GoSub PrintCycle
Cycle += 1
Wend

'--------------------------------
'    3) a DE with Babbage style "pipeline" with pre-add  printing
PRINT
PRINT "3) Pipeline style, Print BEFORE adds"


GoSub LoadDCArray

GoSub AdjustForPipeline
PRINT "     Place DC array into the above machine"
Print "     Crank this machine ";CycLim;" Cycles "
Cycle = 0
while cycle < CycLim
GoSub PrintCycle

    DC(0)+=DC(1): DC(2)+=DC(3): DC(4)+=DC(5): DC(6)+=DC(7)
           DC(1)+=DC(2): DC(3)+=DC(4): DC(5)+=DC(6)

Cycle += 1
Wend

'--------------------------------
'    4) a DE with Babbage style "pipeline" with post-add printing
PRINT
PRINT "4) Pipeline style, Print AFTER adds, input modifications applied"

'
GoSub LoadDCArray
 ' back up for print second
GoSub BackUpOneCycle  ' back up for print second
   ' start back-off for pipeline operation
 GoSub AdjustForPipeline
PRINT "     Place DC array into the above machine"
Print "     Crank this machine ";CycLim;" Cycles "
Cycle = 0
while cycle < CycLim
    DC(0)+=DC(1): DC(2)+=DC(3): DC(4)+=DC(5): DC(6)+=DC(7)
           DC(1)+=DC(2): DC(3)+=DC(4): DC(5)+=DC(6)
GoSub PrintCycle
Cycle += 1
Wend

'--------------------------------
GoTo ExitLoop


LoadDCArray:
PRINT "     Loading DC Array, from Difference array
for I = 0 to NumDC-1    ' copy difference array into DC array
    DC(I) = DifAy(I)
Next i
GoSub PrintDCArray
Return

PrintDCArray:
PRINT "     Contents of DC array"
PRINT "      ";
for I = 0 to NumDC-1
    PRINT USING " ########"; DC(I);
NEXT I
PRINT
Return

PrintCycle:
    print using "cyc=##"; cycle;
for I = 0 to NumDC-1
    PRINT USING " ########"; DC(I);
NEXT I
Print
Return


BackUpOneCycle:
' back up for print second
PRINT "     Backing up DC array one cycle"
for I = NumDC-2 to 0 step -1
    DC(i) = DC(i) - DC(i+1)
next i
GoSub PrintDCArray
Return

AdjustForPipeline:
   ' start back-off for pipeline operation
   PRINT "     Adjust for Pipeline operation"
     DC(6)=DC(6)-DC(7)  ' back off iteration 3, 1st half cycle
     DC(5)=DC(5)-DC(6)  ' back off iteration 2, 2nd half cycle
     DC(6)=DC(6)-DC(7)  '                     , 1st half cycle
     DC(4)=DC(4)-DC(5)
     DC(3)=DC(3)-DC(4)  ' back off iteration 1, 2nd half cycle
     DC(5)=DC(5)-DC(6)
     DC(2)=DC(2)-DC(3)  '                     , 1st half cycle
     DC(4)=DC(4)-DC(5)
     DC(6)=DC(6)-DC(7)
GoSub PrintDCArray
Return
'------------------------------------



ExitLoop:
Print "press any key to continue "
   DIM k$ ' keyboard control input character
    While K$ = ""
        k$ = LCASE$(INKEY$)
        sleep 1
     WEND
     END '
