BRL 1964, NCR 310, starting page 0202



    NCR 310
    National Cash Register Corporation Model 310

    MANUFACTURER
    National Cash Register Corporation

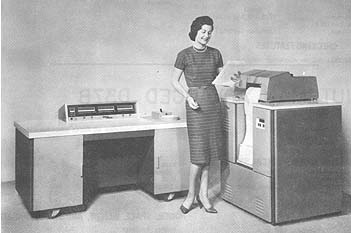

    Photo by the National Cash Register Corporation

    APPLICATIONS
    Bank transit operations. Merchandise control.

    PROGRAMMING AND NUMERICAL SYSTEM
    Internal number system      Binary
    Binary digits/word          12
    Binary digits/instruction   12
    Instructions/word            1 .
    Instructions decoded        62
    Arithmetic system           Fixed point
    instruction type            One address
    Number range                212 - 1
    Instruction word format
    +----------+---------+
    | Function | Address |
    +----------+---------+
    | 6 Bits   | 6 Bits  |
    +----------+---------+
    Automatic coding.
       310 NEAT (NCR's Electronic Autocoding Technique)
    ARITHMETIC UNIT
              Incl. Stor. Access     Excl. Stor. Access
              Microsec               Microsec
    Add       6.4, 12.8, 19.2          6. 4
    Mult        Programmed         1,000
    Div         Programmed         1,800
    Arithmetic mode         Parallel
    Timing                  Asynchronous
    Operation               Sequential

    STORAGE
                    No. of     No. of          Access
                    Words      Digits          Microsecond
    Magnetic Core    4,096    49 and 52 bits       6.4

    INPUT
     Medium               Speed
    Paper Tape (NCR)     1,000 char/sec
    Typewriter           Typing speed



BRL 1964, NCR 310, starting page 0203

    OUTPUT
     Medium                    Speed
     Paper Tape (Teletype)      110 chars/sec

     CIRCUIT ELEMENTS OF ENTIRE SYSTEM
     Type         Quantity
     Diodes            7,000
     Transistors       1,400
     Magnetic Cores   49,152

    POWER, SPACE, WEIGHT, AND SITE PREPARATION
    Power, computer         0.7 Kw 1.0 pf
    Volume, computer       20 cu ft
    Area, computer         10 sq ft
    Room size Dependent on peripheral equipment
    Floor loading         700 lbs concen max
    Weight, computer      700 lbs
    Air conditioning is dependent on room size and peripheral
    equipment needed. Air conditioning is not generally needed.

    PRODUCTION RECORD
    Number in current operation      45

    COST, PRICE AND RENTAL RATES
                                                 Monthly
       Basic System                Purchase      Lease
    NCR 310                        $66,500       $1,625
    NCR 343-4 Lister                33,000          825
    NCR 340-501 Printer/Lister      43,750          995
    NCR 402-2 MICR Sorter           62,000        1,700
    NCR 420-1 Optical Reader        75,000        1,900

    PERSONNEL REQUIREMENTS
    Training is made available by the manufacturer to the
    users in the form of a two week programming course.

    RELIABILITY. OPERATING EXPERIENCE
    Design requirements have allowed for operation under
    extreme conditions. Solid state construction
    provides an unusually high degree of reliability.




BRL 1964, NCR NORDEN SCRIBE II, starting page 0204


    NORDEN SCRIBE II

    NORDEN SCRIBE II
    Scoring & Data Transcription Computer

    MANUFACTURER
    United Aircraft Corporation Norden Division

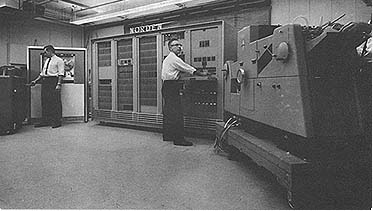

    Photo by United Aircraft Corp.

    APPLICATIONS
    System is used for special purpose data processing and
    off-line scoring and transcription, with general
    applications to topologically equivalent systems.
    Similar to SCRIBE I with the addition of Magnetic
    Tape output. Concurrent output from Card Punch and
    tape can be obtained as well as individually.

    PROGRAMMING AND NUMERICAL SYSTEM
    Internal number system      Binary Coded Decimal
    Decimal digits/word         Variable
    Binary digits/instruction    6
    Instructions/word Variable   1 to 3
    Instructions decoded        18
    Arithmetic system           Fixed point
    Instruction type            One address
    Number range                0 - 999
    Instruction word format     Variable

    Programming is identical to SCRIBE I with the
    additional capability of modifying storage during run of
    sheets by insertion of a modification programming
    sheet in the stack of data sheets.

    A wired program interpreting core memory is used.
    The equipment is a special purpose data processor
    used mainly for the scoring and transcription of
    answer sheets. It can be used for other topologically
    equivalent documents. It is programmed by scanning
    an array sheet which is marked in accordance
    with the identification instructions and their addresses.

    A drum memory with 24 answer keys is used for
    automatically scoring as many as 6 different keys
    indicated on an answer sheet.

    ARITHMETIC UNIT
    Construction (Arithmetic unit only)
     Transistors
    Arithmetic mode          Serial
     Single bit adder is used, same as SCRIBE I.
    Timing                   Synchronous
    Operation                Sequential



BRL 1964, NCR NORDEN SCRIBE II, starting page 0205

    STORAGE
                  No. of    No. of          Access
    Medium        Words     Digits/Word     Microsec
    Core           600         17               14
    Drum           784         40           17,000
    The drum memory also contains two 480-bit recirculating
    registers for output buffering to card punch.

    INPUT
     Medium                         Speed
    Paper Sheets (8 1/2" x 11")     100 sheets/min
     (2,240 marking positions on each sheet)
    The sheet is arranged into 40 positions per row and a
    maximum of 56 rows. The row arrangement is 8
    groups of positions.

    OUTPUT
    Medium                                 Speed
    Punched Card (80 col Parallel Punch)    100 cards/min
    Magnetic Tape (RCA Model 581)         1,000 chars/sec
    Either card or tape or both can be operated simultaneously.
    Tape will contain same 80 characters as
    card plus additional data.

    CIRCUIT ELEMENTS OF ENTIRE SYSTEM
     Type             Quantity
       Diodes
       1N770           5,000 (Approximately)
       et al
       Transistors
       2N317
       2N388
       2N404
       2N426
       and others
                 Total 3,500 (Approximately)
       Magnetic Cores 10,800
    There are a few vacuum tubes (L10) in the system for
    voltage reference plus the photomultiplier tubes
    used for sensing.

    CHECKING FEATURES
    Checking features include many built in routines
    plus parity check on magnetic core memory. Additional
    inherent checks in tape station.

    POWER, SPACE, WEIGHT, AND SITE PREPARATION
    Power, computer       4.5 KVA
    Volume, computer    285 cu ft
    Area, computer       56 sq ft
    Room size            10 x 20 feet
    Floor loading        93 lbs sq ft
                        145 lbs concen max
    Weight, computer  5,200 lbs
    Air conditioned at 60 - 95 F
    Relative humidity at 20% - 60%
    208 V, 3 phase, 60 cycles/second

    PRODUCTION RECORD
    Number produced to date        1
    Number in current operation    1
    Time required for delivery    12 months

    PERSONNEL REQUIREMENTS
                 One 8-Hour Two 8-Hour
                 Shift      Shifts
    Operators      1         2
    Engineers      1         1
    Technicians    1         2
    In-Output Oper 1         2
    Training made available by the manufacturer to the
    user includes training to suit users requirements.

    RELIABILITY, OPERATING EXPERIENCE
    Passed reliability test on 26 March 1962, consisting
    of 10 runs of 7-1/2 hours each with no more than one
    "failure" per run, and availability of 97%.

    ADDITIONAL FEATURES AND REMARKS
    Provides mark sensing capabilities of mose intense
    mark in a group plus ability to provide for variations
    in background level. Includes printing facility for
    identifying sheets in alternate stack. System has a
    capability of scoring mixed answer sheets of different
    tests.

    INSTALLATIONS
    Educational Testing Service, Princeton, New Jersey
